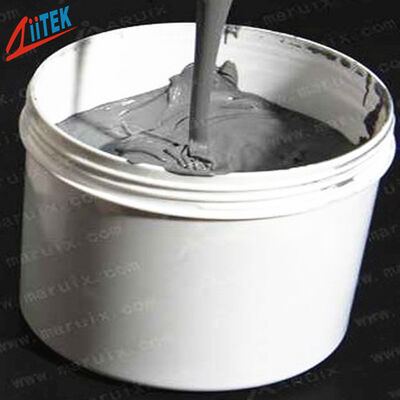

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS

Μεγάλες Εικόνας :  Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: Ziitek
Πιστοποίηση: RoHs
Αριθμό μοντέλου: TIG780-50HP
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: 1 κιλό
Τιμή: 0.1-10 USD/KG
Συσκευασία λεπτομέρειες: 1kg/can
Χρόνος παράδοσης: 3-5 εργάσιμες
Δυνατότητα προσφοράς: 100 kg/ημέρα
Λεπτομερής Περιγραφή Προϊόντος
Όνομα προϊόντων: Καλή θερμική αγωγιμότητα Θερμικό γράσο θερμική πάστα για ηλεκτρονικά εξαρτήματα IC, CPU, MOS χρώμα: γκρί
Κατασκευή & Compostion: Οξείδιο μετάλλου/ λάδι σιλικόνης Πυκνότητα: 2,3 g/cm³
Θερμική αγωγιμότητα: 5,0 W/mK Θερμική αντίσταση ((%22C-in²/W) @30 psi): 0,015
Λέξεις-κλειδιά: Θερμική πάστα Συνιστώμενη θερμοκρασία λειτουργίας: -40 ~ 200 ℃

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS



TIG®780-56 Series is an environmentally friendly silicone based thermal paste designed to efficiently solve overheating problems in electronic devices and improve long-term reliability, TIG®780-50HP is a paste like material that can fully wet the surfaces of electronic components and heat sinks. It acts to fill the gaps between electronic components and heat sinks, eliminate air, and significantly improve heat dissipation eficiency (better than traditional thermal pads or ordinary silicone grease), thereby forming an extremely low thermal resistance interface and achieving excellent thermal conductivity efficiency.



Features



> High thermal conductivity
> Excellent low thermal resistance
> Good electrical insulation
> Excellent long-term stability
> Non toxic, environmentally friendly,and safe, meeting RoHS requirements


Applications lnclude


> Al server
> Industrial equipment
> Medical electronic devices
> LED TV,LED lighting fixtures
> Automotive Electronics (New Energy and Intelligence)
> High end consumer electronics and portable devices



Typical Properties of TIG®780-50HP Series
Property Value Test Method
Color Gray Visual
Construction &Compostion Metal oxide / Silicone oil Ziitek Test Method
Density 2.30 g/cm³ ASTM D792
Thermal Conductivity 5.0W/mK ASTM D5470
Bond line Thickness (mm) 0.008 ASTM D374
Thermal Impedance (℃·in²/W) @30 psi 0.015 ASTM D5470
Thermal Impedance (℃·in²/W) @50 psi 0.012 ASTM D5470
Recommended Operating Temp -40℃ to 200℃ *****
Viscosity(mPa.s) 200000 GB/T 10247



Packaging Specifications


Packaging specifications: 0.5kg,1kg,2kg;

If you have any other specification requirements, please contact our company.
