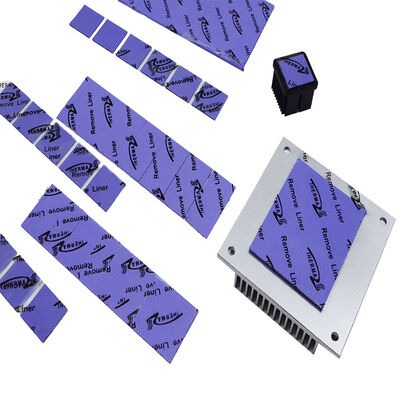

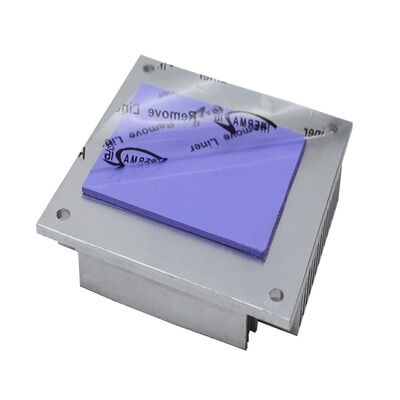

High Performance Hardness 35 Shore OO Thermal Pad For 5G Aerospace AI AIoT AR/VR/MR/XR
Company Profile
Ziitek Electronic Material and Technology Ltd With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
The TIF®500 Series is a well-balanced,general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use,making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs,achieving the best balance between cost and performance.
Features
> Good thermal conductivity
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance
Applications
Electronic components, 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
| Typical Properties of TIF®500 Series |
| Property |
Value |
Test method |
| Color |
Purple |
Visual |
| Construction & Compostion |
Ceramic filled silicone elastomer |
****** |
| Density(g/cm³) |
3.1 |
ASTM D792 |
| Thickness Range(inch/mm) |
0.010~0.020/
(0.25~0.50)
|
0.030~0.200/
(0.75~5.00)
|
ASTM D374 |
| Hardness |
65 Shore 00 |
35 Shore 00 |
ASTM 2240 |
| Continuos Use Temp |
-40 to 200℃ |
****** |
| Breakdown Voltage(V/mm) |
≥5500 |
ASTM D149 |
| Dielectric Constant @1MHz |
5.0 |
ASTM D150 |
| Volume Resistivity |
＞1.0X1012 Ohm-meter |
ASTM D257 |
| Thermal Conductivity(W/m.K) |
2.6 |
ASTM D5470 |
| 2.6 |
ISO22007 |
| Flame rating |
V-0 |
UL 94 (E331100) |
Product Specifications
Standard Thickness:0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
