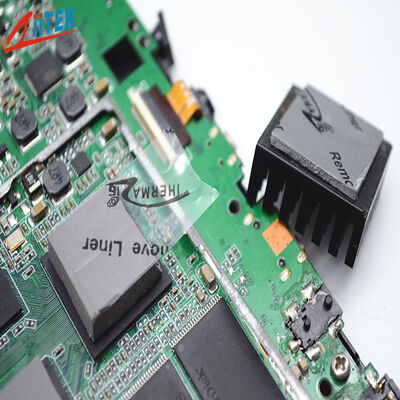

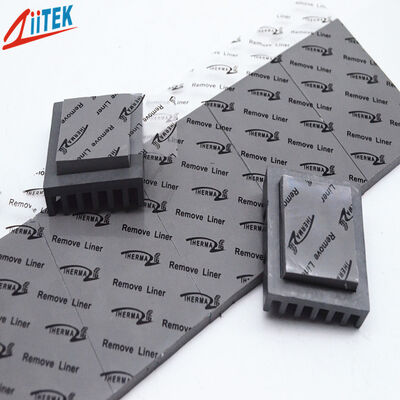

Thermal Conductive Pad Silicone Based Soft Compressible Electrically Isolating Moldable For Complex Parts And Low Stress Applications
The TIF® 100-15-11F Series is a structurally supportive thermal pad designed to provide excellent heat dissipation while ensuring structural support and durability. It reliably fills interface gaps, transfers heat efficiently, and offers mechanical support for stacked components while resisting compressive deformation. This product is ideal for applications requiring a balance between heat dissipation, insulation, and mechanical stability.
Key Features
- Good thermal conductivity: 1.5W/mK
- Moldable for complex parts
- Soft and compressible for low stress applications
- Naturally tacky - no additional adhesive coating required
- Available in various thicknesses
- Broad range of hardness options
Applications
- Cooling components to chassis or frame
- High speed mass storage drives
- Heat sinking housing at LED-lit BLU in LCD
- LED TV and LED-lit lamps
- RDRAM memory modules
- Micro heat pipe thermal solutions
- Automotive engine control units
- Telecommunication hardware
- Handheld portable electronics
- Semiconductor automated test equipment (ATE)
- CPU cooling
- Display card thermal management
- Mainboard/motherboard applications
Typical Properties - TIF® 100-15-11F Series
| Property |
Value |
Test Method |
| Color |
Dark Gray |
Visual |
| Construction |
Ceramic filled silicone elastomer |
- |
| Density (g/cm³) |
2.2 |
ASTM D792 |
| Thickness Range (inch/mm) |
0.010~0.020" / 0.25~0.50mm
0.030~0.200" / 0.75~5.00mm |
ASTM D374 |
| Hardness (Shore 00) |
65 | 60 |
ASTM 2240 |
| Operating Temperature |
-40 to 200℃ |
- |
| Breakdown Voltage (V/mm) |
≥ 5500 |
ASTM D149 |
| Dielectric Constant @1Mhz |
4.5 |
ASTM D150 |
| Volume Resistivity (Ohm-meter) |
≥1.0×10¹² |
ASTM D257 |
| Thermal Conductivity (W/m-K) |
1.5 |
ASTM D5470 / ISO22007 |
| Fire Rating |
V-0 |
UL 94 (E331100) |
Product Specifications
Standard Thickness: 0.010" (0.25 mm) to 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm × 406 mm)
Component Codes
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
